Float Valves (Seviye Kontrol Vanası)

	SPECIFICATIONS
	Body	: Ductile cast iron, GGG40-50
	Bonnet	: Ductile cast iron, GGG40-50
	Stem	: Stainless steel, X20Cr13
	Body Seats	: Bronze, LG2/AISI 304
	Disc	: Ductile cast iron, GGG40-50
	Disc Seats	: Rubber
	Bonnet gasket	: EPDM or NBR
	Float	: Stainless steel, AISI 304
	Lever	: Steel A 37

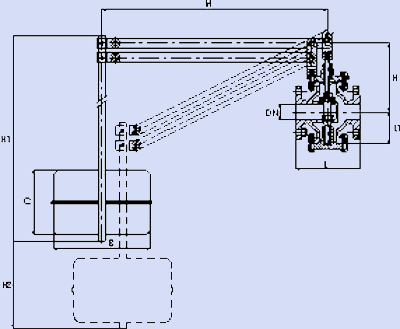

DN	L	L1	H	M	B	C	H1	H2	Weight (kg)
50	200	100	230	655	300	200	875	270	21
80	260	155	250	700	400	180	860	300	40
100	300	170	330	1050	400	180	860	500	62
125	350	200	340	1050	400	250	860	510	80
150	400	200	360	1100	400	250	860	570	104
200	500	280	400	1300	500	300	1300	570	160
250	600	290	420	1300	500	300	1300	580	246
300	700	350	550	1400	500	400	1300	760	345
350	800	440	585	1400	600	400	1600	560	505
400	900	500	600	1400	600	400	1600	800	604
500	1100	550	730	1600	700	530	2000	865	1050
600	1200	600	850	2150	700	530	2000	915	1730
700	1200	600	970	2150	700	530	2000	960	1935
800	1400	700	1100	2400	800	600	2200	1000	2500
