SMS fire-hydrants are used in industrial establishments settlements for urgent and direct fire fighting
- Enable fighting just at the beginning of fire.
|
 |
- Manufactured in accordance with TS2821
- Open and close without hammering effect because of opening in counterflow direction
- Maintain smooth flow with special design
- Are completely sealed because of closing in flow direction
- Have automatic drain to prevents frost
- Have connections in accordance with TS2217
|
 |

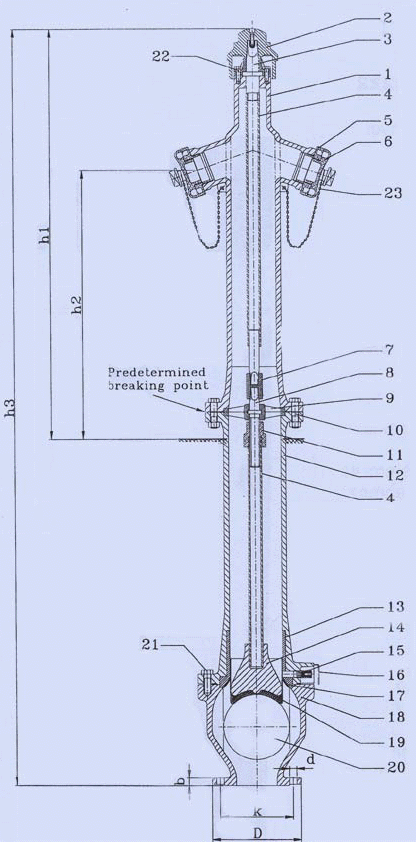

No |
Part Name |
Material |
| 1 |
Body |
GGG 40 |
| 2 |
Bonnet |
GGG 40 |
| 3 |
Stem |
X20Cr13 |
| 4 |
Tube |
X5CrNi188 |
| 5 |
Coupling |
AlMgSi1 |
| 6 |
Cover |
AlMgSi1 |
| 7 |
Coupling |
MS58 |
| 8 |
Stem |
X20Cr13 |
| 9 |
Stem Bearing |
GGG 40 |
| 10 |
Bolt |
X20Cr13 |
| 11 |
Stem nut |
LG2 |
| 12 |
Body |
GGG 40 |
| 13 |
Guide Bearing |
LG2 |
| 14 |
Valve Cone |
GGG 40 |
| 15 |
Drain Valve |
MS58 |
| 16 |
Seat Ring |
NBR |
| 17 |
Drain Guard |
PVC |
| 18 |
Body |
GGG 40 |
| 19 |
Cone Coat |
EPDM |
| 20 |
Ball |
ABS |
| 21 |
Bolt |
8.8 Cadmiert |
| 22 |
Bolt |
8.8Cadmiert |
| 23 |
Rope |
Galv. Steel |
| DN |
80 |
100 |
| h1 |
1050 |
1050 |
| h2 |
710 |
710 |
| h3 |
2150 |
2150 |
| D |
200 |
220 |
| k |
160 |
180 |
| d |
18 |
18 |
| holes |
8 |
8 |
| b |
20 |
20 |
|
